Split Authorise & Charge Integration

Cleeng-Managed Recurring Billing can be integrated as a two-stage process:

  1. Payment Authorisation
  2. Payment Capture

For details please see below.

Payment Authorisation Process

Description

Cleeng Webhooks send notifications for the events that happen within the Cleeng system, one of these events is subscriptionReadyForPaymentAuthorisation.

Once subscribed to this event, you will be receiving all the data necessary for performing payment authorisation processes to the specified endpoint that was set up during Webhooks configuration.

Based on a webhook, an order needs to be created by sending create an order call to Cleeng Payment API. Then the order result returned from this call will be used to trigger payment authorisation with the payment gateway.

In a successful case, to confirm the authorisation, the new payment should be created with 'authorised' status. In a failed case, the new payment should be created with 'rejected' status.

Process Flow

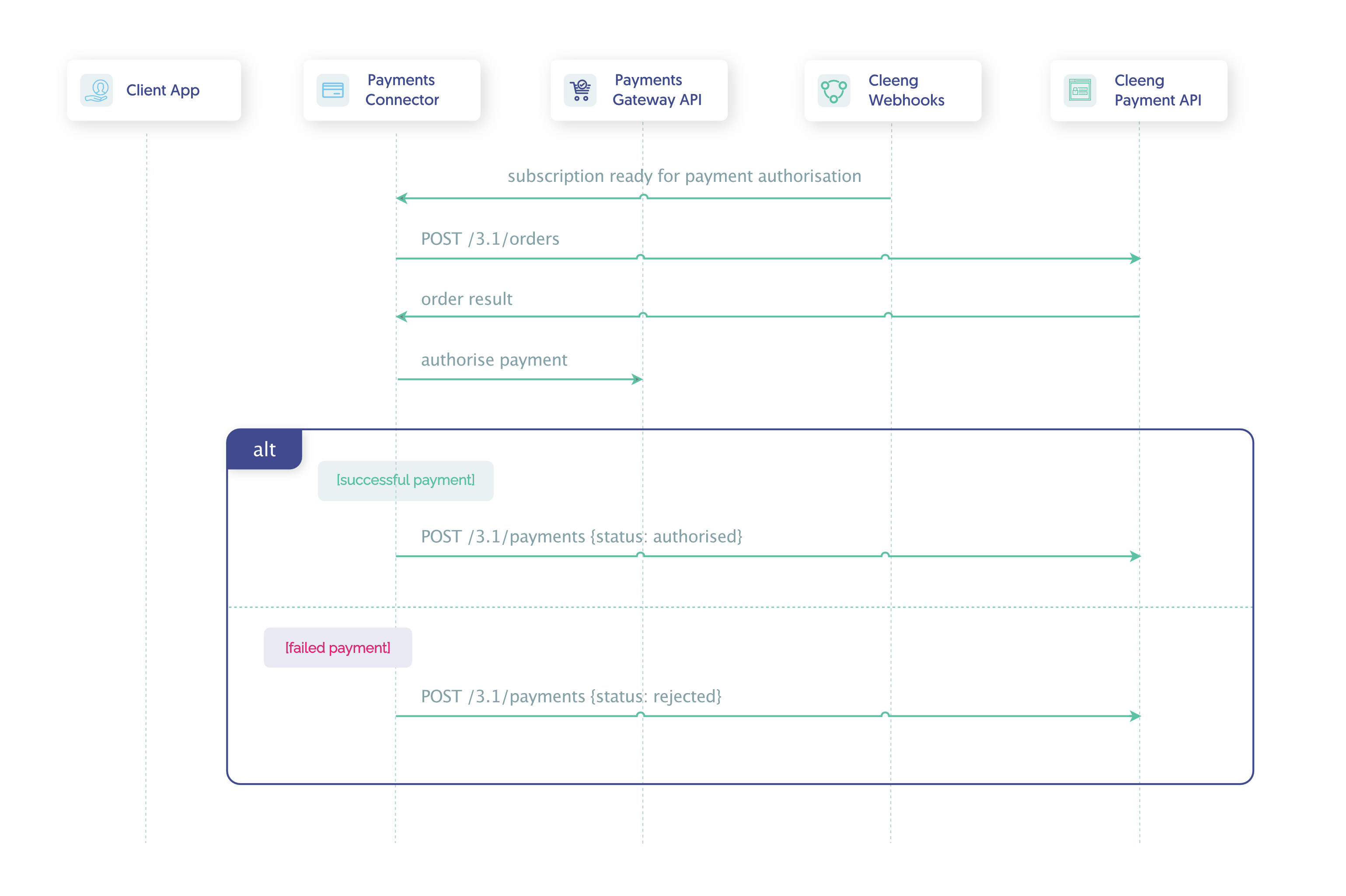

Payment Authorisation Process FlowPayment Authorisation Process Flow

Payment Authorisation Process Flow

📘

Note

Details of the implementation will depend on a specific payment gateway solution.

Step-by-Step Guide

  • Prerequisites
    Before you start, you need to subscribe to the event that you would like to be notified about, in our case this is subscriptionReadyForPaymentAuthorisation (refer here for the guide).

    Upon subscribing to this event, you will be receiving all the data necessary for performing the authorisation process to the specified endpoint that was set up during Webhooks configuration.

  • Step 1: Create Order
    The first step in the process is to create an order which will hold most of the data needed for further actions. For more details on how to create an order, please click here.

    The order result returned from this call will be used to trigger payment authorisation with the payment gateway.

  • Step 2: Authorise Payment
    This step depends on the remote payment gateway system. In general, a request should be made to the remote payment gateway to trigger payment authorisation for the specific subscriber (subscription data is sent in the event).

  • Step 3: Authorisation Result
    One of two scenarios will apply depending on the result achieved from the previous step:

    - SUCCESS: CREATE AUTHORISED PAYMENT FOR SUBSCRIPTION

    To notify the Cleeng platform that the payment authorisation was successful, the payment authorisation for the subscription needs to be confirmed. To do so, an API call should be made to Cleeng Payment API using payments method.

    The Connector should create payment in Cleeng using POST /3.1 /payments. The new payment should be created with 'authorised' status and paymentOperation with ‘recurring-payment’ value.

    Example of confirm authorisation for subscription cURL request:

curl -X POST \
  https://api.cleeng.com/3.1/payments \
  -H 'Content-Type: application/json' \
  -H 'X-Publisher-Token: a6xxki_mf493WSBjEs9D-UpN-0kyESWYPUQo9S6nEewTyuL7'
  -d '{
     "orderId": 343967543,
     "status": "authorized",
     "paymentDetailsId": 987567897,
     "paymentOperation": "recurring-payment",
     "subscriptionId": 876654543
  }

- FAILURE: CREATE REJECTED PAYMENT

To notify the Cleeng platform that the payment authorisation failed, an API call should be made to Cleeng Payment API using payments method.

The Connector should create payment in Cleeng using POST /3.1 /payments. The new payment should be created with 'rejected' status, paymentOperation with ‘recurring-payment’ value and subscriptionId received from the webhook.

Example of payment rejection for subscription cURL request:

curl -X POST \
  https://api.cleeng.com/3.1/payments \
  -H 'Content-Type: application/json' \
  -H 'X-Publisher-Token: a6xxki_mf493WSBjEs9D-UpN-0kyESWYPUQo9S6nEewTyuL7'
  -d '{
     "orderId": 343967543,
     "status": "rejected",
     "paymentDetailsId": 987567897,
     "paymentOperation": "recurring-payment",
     "subscriptionId": 876654543
  }

Payment Capture Process

Description

Cleeng Webhooks send notifications for the events that happen within the Cleeng system, one of these events is subscriptionReadyForPaymentCapture.

Once subscribed to this event, you will be receiving all the data necessary for performing payment capture processes to the specified endpoint that was set up during Webhooks configuration. The payment capture action needs to be performed with the payment gateway.

Afterward, the result of the payment capture will be either failure or success. In both cases, a call must be made to Cleeng Payment API to either capture or reject the payment with the rejection reason on the Cleeng platform side.

Payment capture can happen after the authorisation process or it can appear alone.

If recurring billing consists of two steps: authorisation and capture, the payment capture process looks as follows:

Process Flow

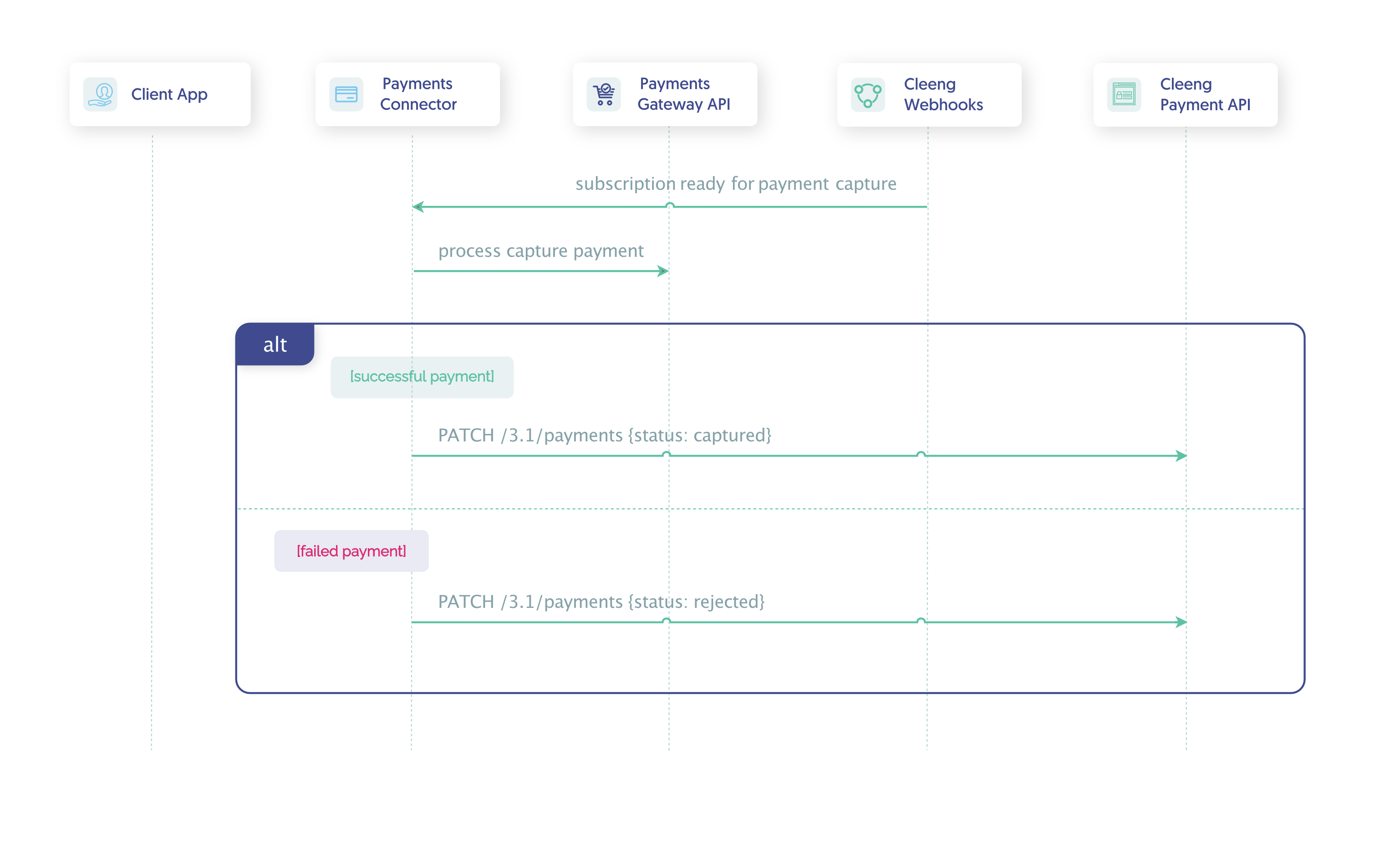

Payment Capture Process Flow - After AuthorisationPayment Capture Process Flow - After Authorisation

Payment Capture Process Flow - After Authorisation

📘

Note

Details of the implementation will depend on a specific payment gateway solution.

Step-by-Step Guide

  • Prerequisites
    Before you start, you need to subscribe to the event that you would like to be notified about, in our case this is subscriptionReadyForPaymentCapture (refer here for the guide).

    Upon subscribing to this event, you will be receiving all the data necessary for performing the capture process to the specified endpoint that was set up during Webhooks configuration.

  • Step 1: Capture Payment
    This step depends on the remote payment gateway system. In general, a request should be made to the remote payment gateway to trigger payment capture for the specific subscriber (subscription data is sent in the event).

  • Step 2: Capture Payment Result
    One of two scenarios will apply depending on the result of the payment capture that was triggered in the previous step.

    - SUCCESS: UPDATE PAYMENT STATUS TO ‘CAPTURED'
    To notify the Cleeng platform that the payment capture was successful. an API call should be made to Cleeng Payment API using payments method.

    The Connector should update payment in Cleeng using PATCH /3.1 /payments with ‘captured’ status.

    Example of capture subscription cURL request:

curl -X PATCH \
  https://api.cleeng.com/3.1/payments/345234123 \
  -H 'Content-Type: application/json' \
  -H 'X-Publisher-Token: a6xxki_mf493WSBjEs9D-UpN-0kyESWYPUQo9S6nEewTyuL7'
  -d '{
     "status": "captured",
     "paymentOperation": "recurring-payment",
     "subscriptionId": 876654543
  }

- FAILURE: UPDATE PAYMENT STATUS TO ‘REJECTED’

To notify the Cleeng platform that the payment failed, an API call should be made to Cleeng Payment API using payments method.

The Connector should update payment in Cleeng using PATCH /3.1 /payments with 'rejected' status.

curl -X PATCH \
  https://api.cleeng.com/3.1/payments/345234123 \
  -H 'Content-Type: application/json' \
  -H 'X-Publisher-Token: a6xxki_mf493WSBjEs9D-UpN-0kyESWYPUQo9S6nEewTyuL7'
  -d '{
     "status": "rejected",
     "paymentOperation": "recurring-payment",
     "subscriptionId": 876654543
  }

Up Next

Well done! Now that you are ready with recurring billing you can move on to other features:
