Google Play Billing

This tutorial will help you integrate Google Play in-app purchases using the Google Play Billing connector for Android devices, including phones, tablets, and Android TV.

Overview

The Google Play Billing connector lets you offer in-app subscriptions in your Android applications (phones, tablets, Android TV) and have Cleeng manage the full subscriber lifecycle - entitlement, renewals, grace periods, account holds, pauses, and revocations.

Cleeng acts as an observer: Google handles the payment, and Cleeng records the purchase, keeps it in sync with Google's authoritative state, and controls access rights on your behalf.

The integration lives under Admin & Tools > Integration Hub > Google Play Billing V2 in the Cleeng Dashboard, and exposes a small REST API surface that your app or backend calls when a purchase happens.

It solves three publisher problems:

• end-to-end visibility into the subscription lifecycle (instead of only seeing the initial payment),

• consolidated cross-platform reporting, and

• a reliable mechanism for re-assigning subscription ownership between customers.

Availability

Main Benefits

• Full subscription lifecycle coverage - 18+ Google notification types processed automatically (vs. 4 in the legacy integration), including grace period, account hold, pause/resume, and revocation.

• Real-time entitlement sync - purchases are verified and reflected in Cleeng without polling Google manually; lifecycle changes propagate via Real-Time Developer Notifications.

• Cross-platform reporting parity - same level of analytics and tracking as Apple StoreKit 2.

• Subscription ownership transfer - re-assign an active subscription from one customer to another via a dedicated endpoint.

How It Works

1. The user buys a subscription in your Android app via Google Play Billing Library.

2. Your app calls Cleeng's POST /purchases endpoint with the Google purchase token.

3. Cleeng verifies the purchase against Google's V2 API, creates the subscription record, and grants entitlement asynchronously. Your app polls a status endpoint, listens to a webhook, or both.

4. From there, Cleeng listens to Google's Real-Time Developer Notifications (RTDN) and keeps the subscription in sync - no further action required from your app for renewals or lifecycle events.

5. If a subscription needs to move to a different customer, your backend calls POST /purchases/transfers .

Prerequisites

Before you start, make sure you have:

• A Google Play developer account and a published (or test-track) Android app - see Google Docs.

• Subscription products defined in Play Console (Subscription > Base Plan > Offer hierarchy).

• A Google Cloud service account with Google Play Android Developer API access and the following Play Console permissions: View financial data, orders, and cancellation survey responses and Manage orders and subscriptions.

• A Google Cloud Pub/Sub topic for Real-Time Developer Notifications.

• A Cleeng publisher account on the Pro or Enterprise plan.

How to create a Google service account key

Cleeng requires a service account key in JSON format to validate Google Play purchases and keep subscription state synchronized between Google Play and Cleeng. The Google Cloud service account must have permission to call the Google Play Android Developer API on behalf of your Play Console account.

Follow the steps below to create the service account and download the JSON key.

1. In the Google Cloud Console, select the correct project and confirm that access to the Google Play Android Developer API is enabled (the button reads Enable when disabled and Manage when already enabled).

2. Open Service Accounts and click Create service account. Walk through the wizard:

   2.1 Copy the generated Service account ID (email address) - you will need it in step 5.

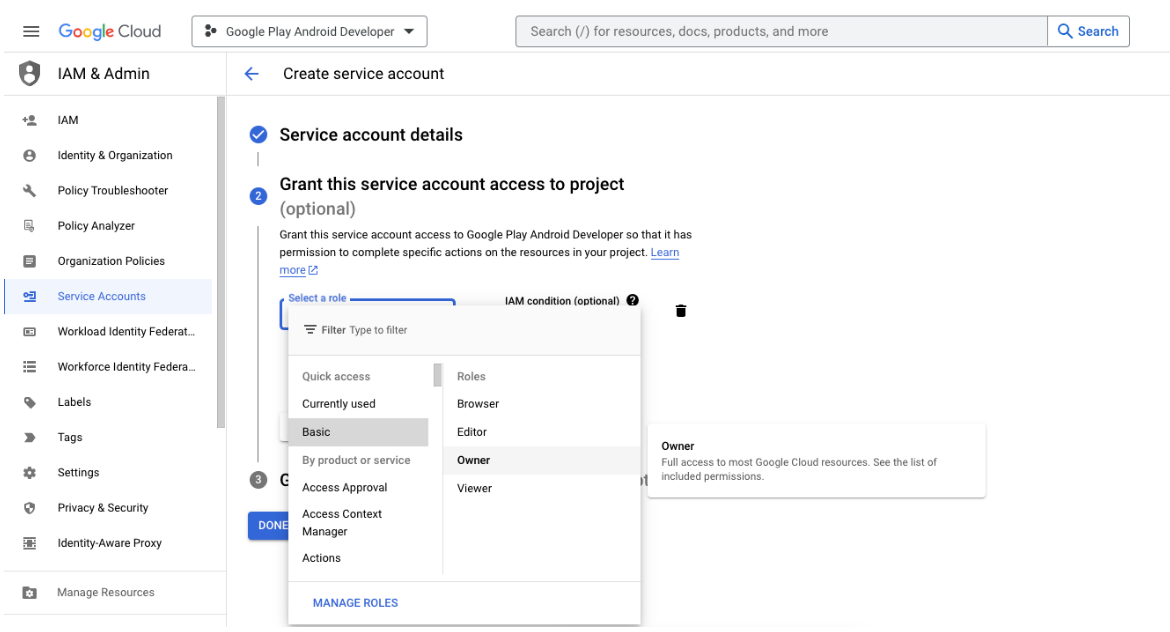

   2.2 Under Grant this service account access to project, select Basic > Owner.



   The service account now exists in Google Cloud. Next, grant it access to your Google Play Console.

   2.3 Open the Users & Permissions page in the Google Play Console.
   2.4 Click Invite new users.

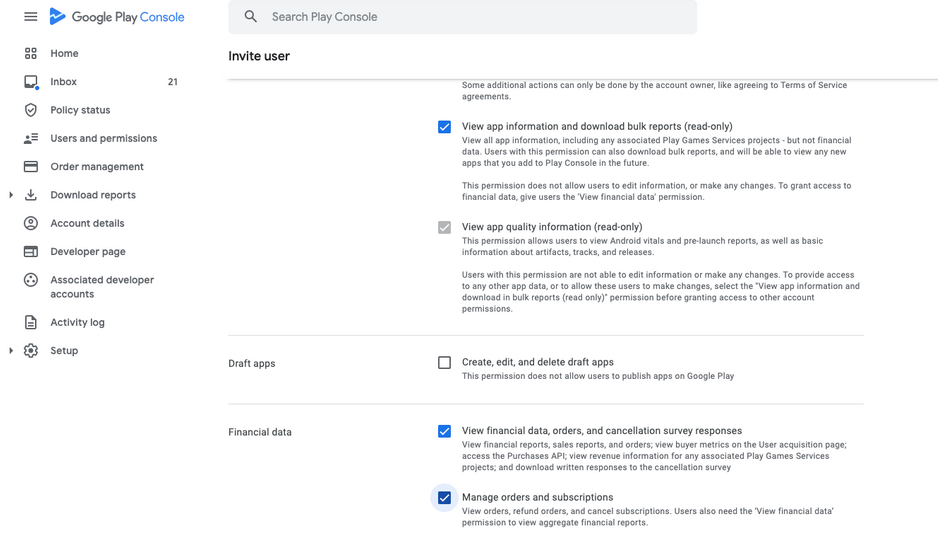

   2.5 Enter the service account email from step 2a and grant the following Play Console permissions:
   a. View app information and download bulk reports (read-only)
   b. View financial data, orders, and cancellation survey responses
   c. Manage orders and subscriptions



   2.6 Click Invite user to finish. The service account can now access the Google Play Developer API. To use it, generate a JSON key.
   2.7 Back in the Google Cloud Console, open Service Accounts again.
   2.8 Click the service account email, then:
   a. Open the Keys tab.
   b. Click Add Key.

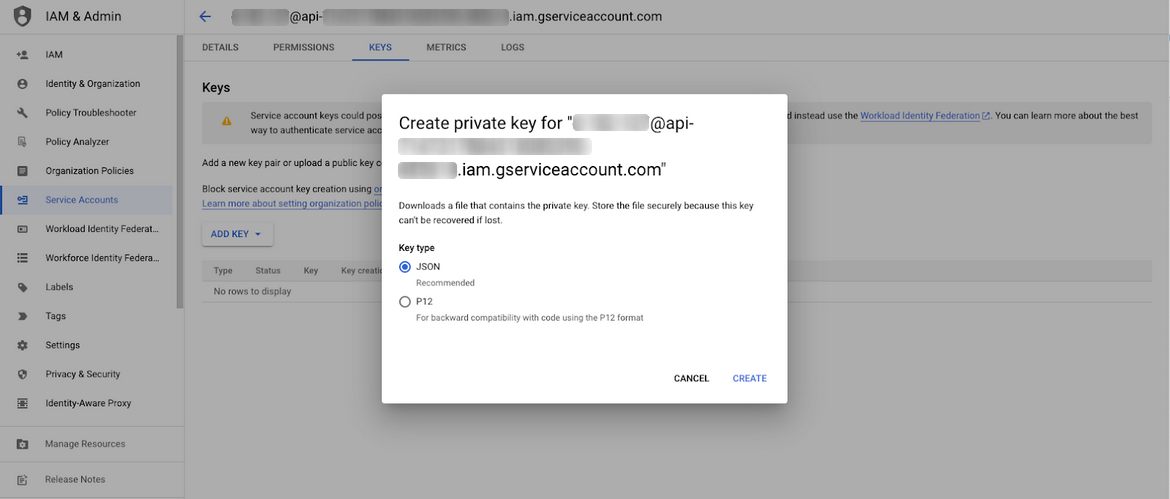

   2.9 Choose Create new key from the drop-down.
   2.10 Pick JSON as the Key type and click Create. The JSON key downloads automatically - store it securely; it cannot be downloaded again. Paste its contents into the Service account JSON key field in the Cleeng Dashboard (see Configure the connector).



   For background reading, see Google's getting-started guide.

Step-by-Step Guide

1. Configure the connector in the Cleeng Dashboard

1. Log in to the Cleeng Dashboard.

2. Map your Google Play products to Cleeng offers. Each Google Play subscription has a productId and one or more base plans, each identified by a basePlanId. In Cleeng, every productId / basePlanId pair maps to a single Cleeng offer.

   For each base plan you want to sell:

   • Take the subscription's productId and the basePlanId of the base plan from Google Play Console.

   • Combine them in the form {productId}/{basePlanId}.

   • In the Cleeng Dashboard, open the corresponding Cleeng offer, add the resulting identifier under App store product IDs, and set the app store option to Android.

     Example: a subscription with productId = "plan_premium" and an annual base plan with basePlanId = "annual" should be linked to its Cleeng offer with the identifier plan_premium/annual.

   📘

   Backward compatibility

   If you already use the legacy approach where the identifier under App store product IDs is the bare productId (no basePlanId suffix), it remains supported. Existing purchases continue to be reported correctly without any change on your side. You only need to switch to the {productId}/{basePlanId} form if you want different base plans of the same subscription to map to different Cleeng offers.

   Upgrades and downgrades are configured separately - see Subscription upgrades and downgrades. All offer mappings must be in place before activating the integration - otherwise incoming purchases cannot be resolved to a Cleeng offer.

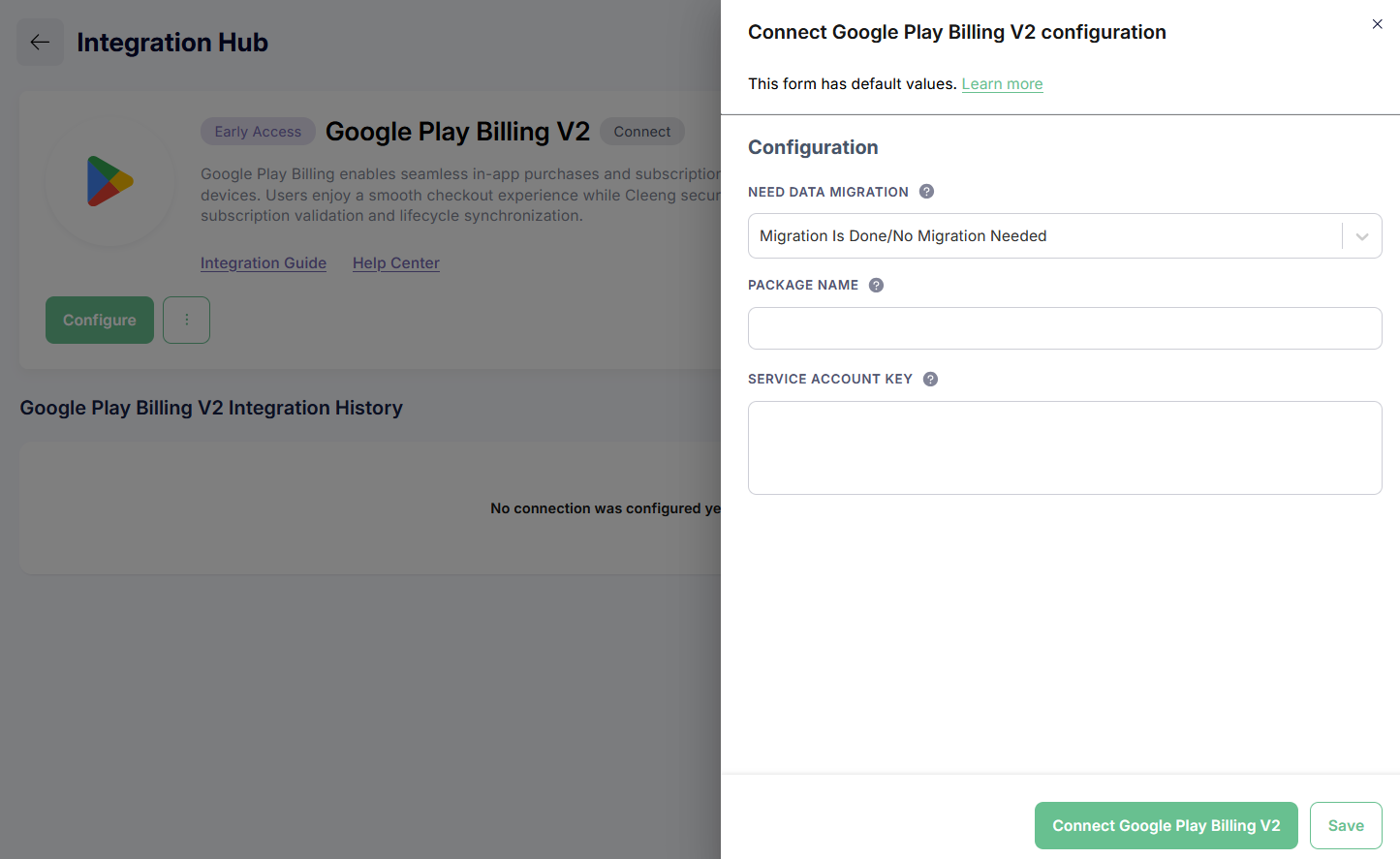

3. Go to Admin & Tools > Integration Hub > Google Play Billing V2.

4. Fill in the configuration form.



   All three fields are required:

   • Do you need to migrate data? Pick the option that matches your situation:

     • Migration is done / No migration needed - default. Choose this if you are onboarding directly to the new connector with no legacy Android in-app data.

     • Migrate data from the legacy connector or Migrate data to Cleeng - choose one of these only when Cleeng is coordinating a data migration for your publisher account. While either migrating value is selected, purchase and notification events are buffered and replayed once the migration is marked done.

   • Package name - the Android application package name as registered in Google Play Console (for example, com.example.app). This value must match the packageName your app sends in each POST /purchases and POST /purchases/transfers request, and the packageName published in every Real-Time Developer Notification.

   • Service account JSON key - paste the JSON key generated for your Google Cloud service account (the same key used to grant Cleeng access to the Google Play Android Developer API).

   🚧

   Important - migrating from the legacy Google Play connector?

   If you are currently using the legacy Google Play integration in Cleeng Core, do not activate the configuration yet.

   Save the form with “Do you need to migrate data?” set to Migrate data from the legacy connector and leave the integration deactivated until the scheduled migration call with the Cleeng Support Team.

   Activating before migration starts will route live traffic to the new connector before any data has been migrated, leaving the new connector with no record of your existing subscriptions.
   See the Seamless Migration section below for the full step-by-step migration flow.

5. Click Connect to save and activate the integration.

2. Set up Real-Time Developer Notifications

Real-Time Developer Notifications (RTDNs) are one-way push messages from Google Play to Cleeng. They keep the subscription state in Cleeng aligned with Google's authoritative state without any polling from your app - renewals, cancellations, grace period transitions, account holds, pauses, revocations, and refunds are all delivered as RTDN events.

The connector listens for RTDNs on the following endpoints. Replace {publisherId} with your Cleeng publisher ID:

Supported notification types

The new connector processes the full subscription notification surface. The table below lists each notificationType value (per Google's RTDN reference) and how Cleeng handles it:

One-time-product notifications are acknowledged to Google but otherwise ignored - only subscriptions are supported in this release.

Set up Pub/Sub in Google Cloud and Google Play Console

Follow the steps below to configure a Cloud Pub/Sub topic and push subscription that delivers RTDNs to Cleeng.

1. Log in to your Google Cloud Console.

2. Open the Pub/Sub topic list and select the Google Cloud project linked to your Android app.

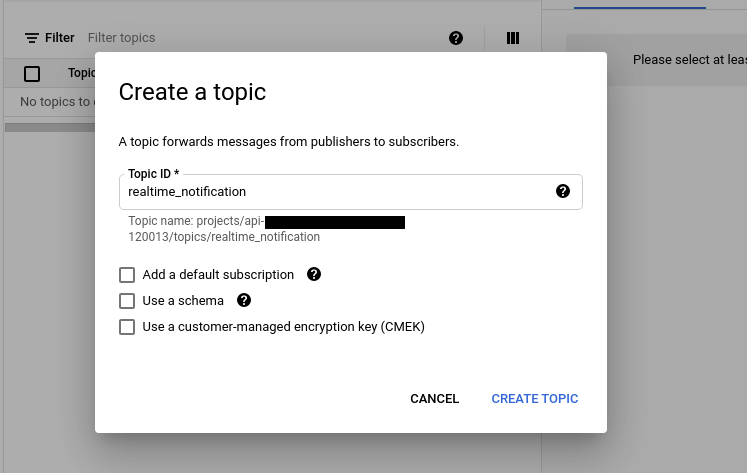

3. Create a topic. The topic ID is up to you (for example, realtime_notification).

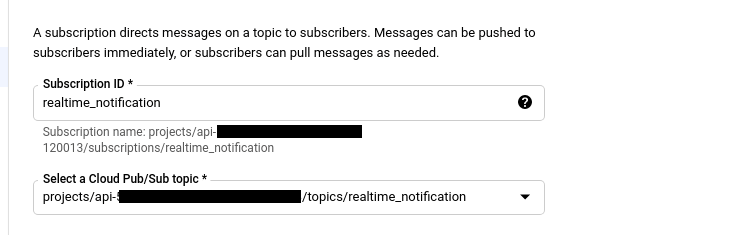

4. On the topic, create a subscription. The subscription ID is also free to choose.



   Configure the subscription with:

   • Cloud Pub/Sub topic: the topic you created in step 3.

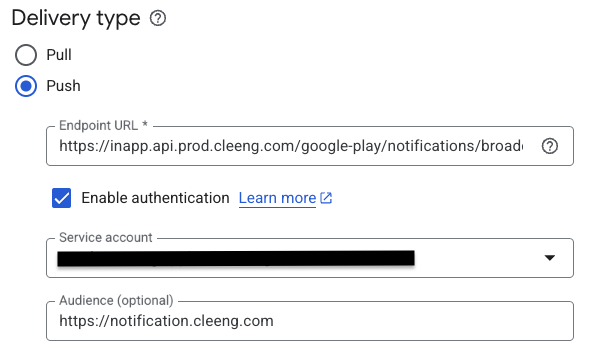

   • Delivery type: switch from Pull to Push and enter the Cleeng notification URL for your environment:
     • Production: https://inapp.api.prod.cleeng.com/google-play/notifications/broadcasters/{publisherId}
     • Sandbox: https://inapp.api.sandbox.cleeng.com/google-play/notifications/broadcasters/{publisherId}



   • Enable authentication: turn on JWT authentication. Choose your service account and set the Audience to the connector base URL:

     • Production: https://notification.cleeng.com

     • Sandbox: https://notification.sandbox.cleeng.com See Google's push authentication docs for details.

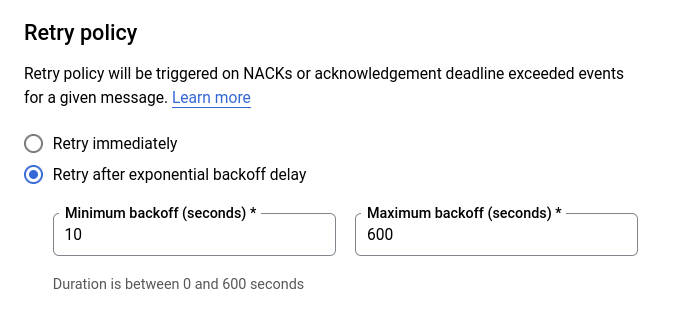

   • Retry policy: select Retry after exponential backoff delay with Google's recommended values.

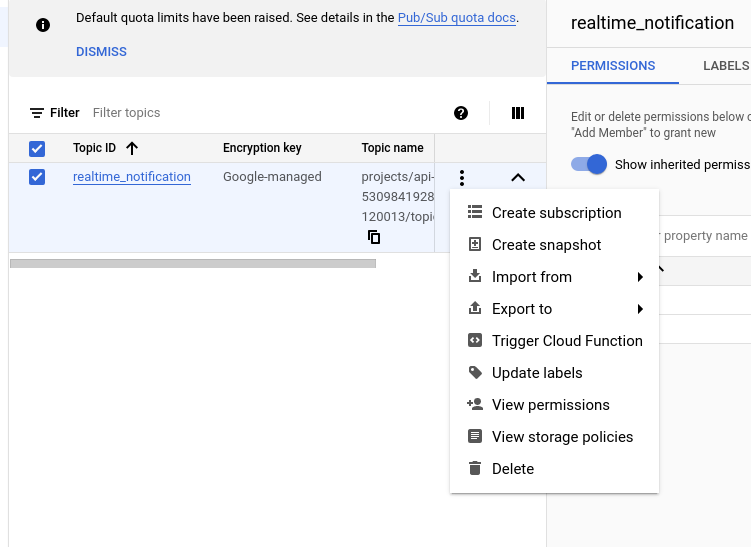

5. Return to the Topic list and open the View permissions panel for your topic.

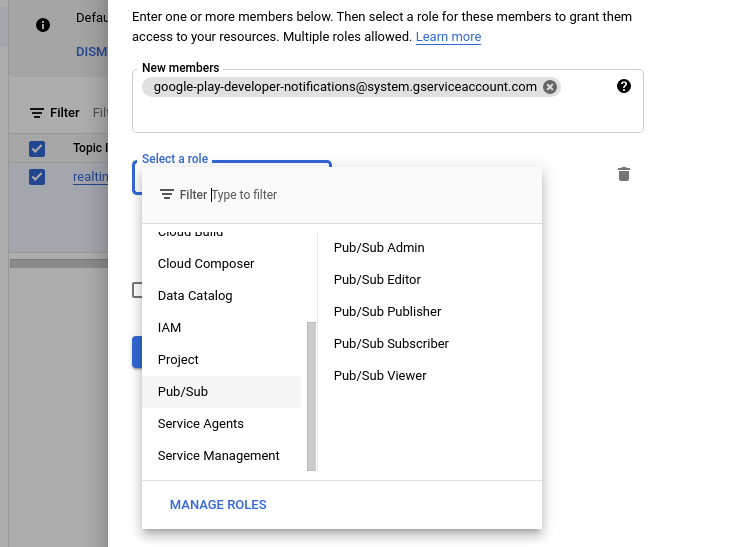

6. Click Add principal and grant the Pub/Sub Publisher role to [email protected]. This lets Google Play publish RTDNs to your topic.



7. Open the Google Play Console and select your application.

8. Go to Monetization setup and paste the full topic name into the Real-time developer notifications field (you can copy it from the topic list in Google Cloud Console).

9. Click Send test notification. If Google reports success, save the settings - your RTDN pipeline is live.

3. Register purchases from your app

After a successful purchase in your app, call: POST /purchases .

Authentication: send either Authorization: Bearer {jwt} (client integration) or X-Publisher-Token (server-to-server). Always include the X-Publisher-Id header.

Request body:

{
  "cleengCustomerId": 123456789,
  "purchaseToken": "oepjlkkldmo...",
  "packageName": "com.example.app",
  "productType": "subscription"
}

productType must be subscription. Any other value (including one_time_product) is rejected with HTTP 400.

Response - 202 Accepted:

{
  "message": "Purchase accepted for processing",
  "synchronizationId": "e45211af-6360-4ff9-9a97-3f2392fe355e"
}

The endpoint is asynchronous. Use the returned synchronizationId to check status.

4. Receive the result

Once the purchase is registered, get the outcome in one of two ways (or both):

• Polling - GET /purchases/synchronizations/{synchronizationId} . The response contains status (processing, retrying, or finalized), and once finalized, an accessGranted flag, offerId, and a result code. Typical synchronization finalizes within 5–10 seconds. See more details on polling statuses below.
• Webhook - subscribe to the inappPurchaseSyncResult topic in your webhook configuration. The payload arrives once per synchronization, when the record is finalized, and includes the same fields as the polling response plus the original purchase context. In addition, the usual Cleeng subscription lifecycle topics are emitted for subscriptions.

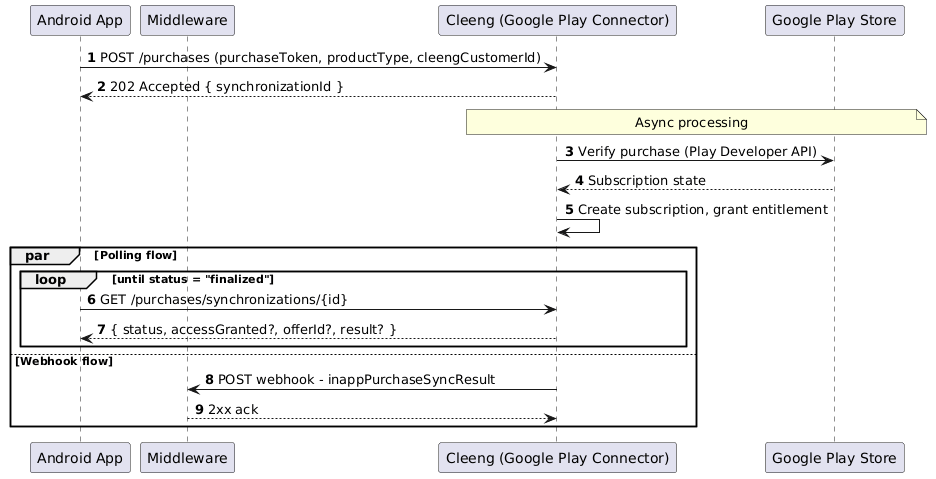

The sequence diagram below shows both flows running in parallel after a single POST /purchases call:

Polling gives immediate UI feedback while the user waits; the webhook guarantees finalization even if the app is backgrounded or polling times out. Combine both for the most reliable client experience.

While temporarily caching the entitlement is not mandatory, it is strongly recommended to enhance the user experience and ensure immediate access to content. Since purchase registration depends on an external API, there may be some delay before the process is completed and the access is granted permanently.

Polling statuses

Here are the possible scenarios and the corresponding response fields:

5. Transfer a subscription between users (when needed)

If a registered purchase is already owned by a different Cleeng customer, the synchronization returns result: OWNED_BY_ANOTHER_USER. To re-assign ownership, call: POST /purchases/transfers

{
  "targetCustomerId": 999,
  "purchaseToken": "oepjlkkldmo...",
  "packageName": "com.example.app",
  "productType": "subscription"
}

The endpoint is asynchronous and returns a synchronizationId to poll. Possible results:

• PURCHASE_OWNERSHIP_TRANSFERRED - ownership moved to the target customer; the new owner is entitled.
• PURCHASE_OWNERSHIP_UNCHANGED - the target customer already owned the subscription; treat as success.

6. Keep subscribers synchronized (automatic)

Once a purchase is registered, Cleeng processes all subscription lifecycle events from Google's Real-Time Developer Notifications (RTDNs) automatically. Your app does not need to call any further endpoints to keep entitlements up to date.

The connector handles renewals, cancellations, grace periods, account holds, pause/resume, revocations, expirations, deferred billing, price-change notifications, and voided purchases (refunds). One-time product RTDNs are acknowledged to Google but otherwise ignored.

Purchase Acknowledgement

When using the V2 Google Play connector, the Client application does not need to acknowledge the purchase manually. The connector acknowledges the initial purchase automatically.

Acknowledgement is required because Google Play refunds and revokes any purchase that is not acknowledged within three days (see Google Documentation). The V2 connector handles this for you.

Testing

Use the sandbox environment for end-to-end validation:

To test the integration:

1. Configure a Google Play test environment.
2. Create a Cleeng sandbox account (or log in if you have one) and create a matching test offer.
3. Make sure the Google product and Cleeng offer are mapped in the sandbox Dashboard.
4. Upload the sandbox service account JSON key in the Cleeng Dashboard.
5. Set up the Pub/Sub push subscription pointing to the sandbox notification URL.
6. Send a test notification from Play Console to verify connectivity.
7. Make a test purchase in your app and verify entitlement is granted.

Scenarios to cover:

• Initial subscription purchase.
• Recurring renewal.
• Failed payment → grace period → account hold → recovery.
• User-initiated cancellation and subsequent expiration.
• Pause and resume.
• Upgrade and downgrade between plans.
• Purchase restoration (reinstall or device switch).
• Subscription ownership transfer (including the PURCHASE_OWNERSHIP_UNCHANGED no-op case).

Additional Features

• Idempotent retries - requests are deduplicated by purchaseToken. If a synchronization is already in progress for the same token, the API returns 409 Conflict with the existing synchronizationId so your client can resume polling without creating a duplicate record. Safe to retry on network errors or app crashes.
• Crash recovery - on every app launch, call BillingClient.queryPurchasesAsync() and re-submit any unprocessed purchases to POST /purchases . Idempotency ensures no double-processing.

Common Errors & Troubleshooting

Good to Know

Handling "Unidentified Users"

If Cleeng receives a Real-Time Developer Notification (RTDN) for a successful transaction from Google Play, but your Android application fails to send the matching Purchase Registration API call, Cleeng creates a temporary placeholder account known as an Unidentified User.

While the payment is safely recorded in our system, content access is not granted to the user until this registration call is successfully received to sync the user's details. To ensure a seamless viewing experience on Android devices, it is critical that your application consistently triggers the Purchase Registration API to complete the purchase flow.

For more details on how these placeholder accounts work, how to identify them, and how to reconcile them, please read our comprehensive guide on Understanding Unidentified Users in In-App Purchases.

FAQs

Q: Are one-time products supported?
A: No. Only auto-renewable subscriptions are supported in this release. Requests with productType=one_time_product are rejected with HTTP 400.

Q: Do I need to update my app immediately when my publisher account is migrated to the new connector?
A: No. The legacy POST /android/payment endpoint and the legacy RTDN URL continue to work via a seamless routing layer. You can migrate to the new endpoints at your own pace.

Q: Can I use polling and the webhook together?
A: Yes - we recommend it. Polling gives immediate UI feedback while the user waits; the webhook guarantees finalization even if the app is backgrounded or polling times out.

Q: What happens if my app crashes after Google confirms the purchase?
A: Call queryPurchasesAsync() on every app launch. Re-submit any unprocessed purchases to POST /purchases - idempotency by purchaseToken ensures no double-processing.

Q: Are voided purchases (refunds) reconciled automatically?
A: Yes. Cleeng listens to Google's voided-purchase notifications and updates entitlement automatically.

Q: What types of refunds can Cleeng detect?
A: Cleeng can only detect refunds with entitlements revocations. Refunds without entitlement revocation (where the customer gets their money back, but keeps subscription access) will not be detected. See Google's documentation for more information.

Seamless Migration

For publishers already on the legacy Google Play connector, Cleeng ensures a smooth transition to the new connector with no Android app changes required.

A gateway-level routing layer fronts the legacy POST /android/payment endpoint and the legacy v2.0 Pub/Sub notification URL, and forwards traffic to either the legacy connector or the new connector based on the per-publisher configuration in the Cleeng Dashboard.

During the migration window itself, incoming purchases, transfers, and Real-Time Developer Notifications are buffered in Cleeng and replayed once data migration finishes - no message loss.

How It Works

• Routing decision - for each request, the seamless routers look up the Google Play Billing V2 configuration for your publisher. If the configuration is inactive (or absent), traffic continues to be handled by the legacy connector. If it is active, traffic is routed to the new connector.
• Deferral during migration - when Do you need to migrate data? is set to either Migrate data from the legacy connector or Migrate data to Cleeng, the new connector accepts each incoming event, immediately writes it to a dedicated buffer, and returns success to the caller. No subscription is created or modified yet.
• Automatic resume - when you switch Do you need to migrate data? to Migration is done / No migration needed and save, the connector automatically drains every buffered event into the live processing queue. No manual replay required.

Step-by-Step Guide

The migration requires coordinated actions from the publisher and Cleeng. The table below lists the order of steps and who owns each one.

✔️ Migration complete. Your seamless transition to the new Google Play Billing connector is now finished. The legacy POST /android/payment endpoint and the legacy v2.0 Pub/Sub notification URL continue to work via the seamless routing layer - you can migrate your app to the new endpoints at your own pace.

Notes & Limitations

• The seamless purchase router supports re-routing of legacy POST /android/payment traffic only. It does not perform implicit cross-customer transfers - if a registered purchase needs to be re-assigned to a different Cleeng customer after migration, use the new POST /purchases/transfers endpoint directly.
• During the migration window (between activation in step 5 and Migration is done in step 6), entitlement changes derived from new Google notifications are not visible until step 6 completes and buffered events are drained. Plan the migration window accordingly.
• Deferred events are persisted with a 30-day TTL. If a migration is left in the Migrate data… state for longer than 30 days, older buffered events may expire and would not be replayed.

Developer Checklist

• Google Play developer account configured; subscription products created.
• Google Cloud service account created with Android Developer API access.
• Service account JSON key uploaded in the Cleeng Dashboard.
• Google Play products mapped to Cleeng offers.
• Pub/Sub topic and push subscription configured with the Cleeng notification URL.
• Google Play Billing Library integrated in the Android app.
• App calls POST /purchases after a successful billing flow.
• Status check implemented via polling (GET /purchases/synchronizations/{id}) and/or inappPurchaseSyncResult webhook.
• OWNED_BY_ANOTHER_USER handled with POST /purchases/transfers.
• Crash recovery implemented (queryPurchasesAsync on app launch).
• End-to-end tested in sandbox.
• Go live.

Related Content

• Webhooks Guide - webhook topic catalogue and integration notes.
• Google Play Billing Documentation - Google's official Billing Library docs.
• Real-Time Developer Notifications Reference - Google's RTDN payload reference.
